Kitchen Carcases

Kitchen Carcases

We only use the highest grade carcases which are 18mm thick, including the back panel.

Our made to order bespoke rigid cabinets features the following:


· 18mm solid kitchen rigid cabinets – cam and dowel construction
· Colour co-ordinated cabinets - where applicable or it will default to oak effect
· Doors / drawer fronts pre-fitted to the carcase (except on pull out units)
· 18mm solid backs in base units
· 18mm solid backs in wall units
· Cabinet edged all round
· Blum or Hettich soft close heavy duty 40kg drawer system with 16mm solid MFC back and base, 450mm deep
· Blum standard Aventos system for the gas lift units
· Blum or Hettich fully integrated soft close hinges
· Four of our most popular unit heights are as follows (1250, 575/1825, 720/1970 & 900/2150mm) these exclude 150mm legs
· Wall unit depths 300mm
· Base units 870mm high (incl legs), 560mm depth with 50mm service void
· 150mm adjustable legs for fitting on uneven floors
· Pull-out units have 20mm service void
· Kessebohmer wirework as standard
· 25 year guarantee on all carcases

Carcase colour options


Egger UK Standard Range

The Egger UK collection of decor finishes provides an eclectic mix of both contemporary and classic designs of the highest quality. As market leaders in design orientation, they anticipate trends.

One of the benefits of the EGGER product is the ability to match all of our kitchen doors using a co-ordinated design approach.

View carcase colour options

Carcase Sizes:

Base units

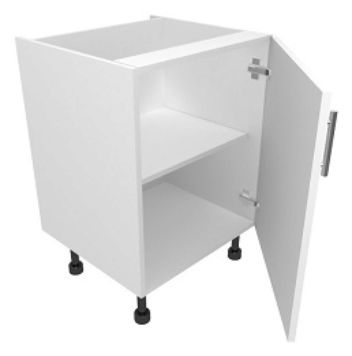

High-line single base units

High-line single base units
High-line base units - Available widths in mm:

150, 260, 300, 350, 400, 450, 500, 550, 600mm

High-line double base units

High-line double base units
High-line base units - Available widths in mm:

600, 700, 800, 900, 1000, 1100, 1200mm

High-line base units - Slim line

High-line base units - Slim line
300mm deep High-line base units - Available widths in mm:

150, 260, 300, 350, 400, 450, 500, 550, 600, 700, 800, 900, 1000, 1100, 1200mm

Drawer-line base single door units

Drawer-line base single door units
Drawer-line base units - Available widths in mm:

300, 350, 400, 450, 500, 600

Drawer-line base double door units

Drawer-line base double door units
Drawer-line base units - Available widths in mm:

600, 700, 800, 900, 1000, 1200

Drawer-line base double door, single drawer units

Drawer-line base double door, single drawer units
Drawer-line base units - Available widths in mm:

600, 700, 800, 900, 1000, 1200

Drawer units

2 Drawer base units

2 Drawer base units
2 Drawer base units - Available widths in mm:

300, 400, 500, 600, 800, 900, 1000

3 Drawer base units

3 Drawer base units
3 Drawer base units - Available widths in mm:

3 drawer (1 x shallow 2 x pan drawers)

400, 500, 600, 700, 800, 900, 1000

4 Drawer base units

4 Drawer base units
4 Drawer base units - Available widths in mm:

4 equal drawer

500, 600

4 Drawer base units

4 Drawer base units
4 Drawer base units - Available widths in mm:

3 x cutlery 1 x pan drawer

500, 600

5 Drawer base units

5 Drawer base units
5 Drawer base units - Available widths in mm:

5 equal drawer

300, 350, 400, 450, 500, 600, 800, 900, 1000


Base unit with internal 3 drawer units

Base unit with internal 3 drawer units
3 Internal Drawer base units - Available widths in mm:

300, 350, 400, 450, 500, 600, 800, 900, 1000


Curved base units

Curved high-line base units

Curved high-line base units
Curved high-line base units - Available widths in mm:

300x300, 410x430, 300x560


Other base units

Belfast Sink Housing - base units 460mm

Belfast Sink Housing - base units 460mm
Belfast Sink Housing - base units - Available widths in mm:

600, 800


Belfast Sink Housing - base units 490mm

Belfast Sink Housing - base units 490mm
Belfast Sink Housing - base units - Available widths in mm:

600, 800


Oven housing base units

Oven housing  base units
Oven housing base units - Available widths in mm:

600mm without drawer



Oven housing base units with working drawer

Oven housing  base units with working drawer
Oven housing base units - Available widths in mm:

600mm with drawer


Built Under Microwave housing base units

Built Under Microwave housing base units
Built Under Microwave housing base units - Available widths in mm:

600mm with door
600mm with drawer


Wine Racks - base units

Wine Racks - base units
Wine Racks - base units - Available widths in mm:

150, 300, 450, 500, 600


Base Open End Units - base units

Base Open End Units - base units
Base Open End Units - Available widths in mm:

300x300, 300x560


Base Open Units - base units

Base Open Units - base units
Base Open Units - Available widths in mm:

150, 260, 300,400, 450, 500, 600, 700, 800, 900, 1000, 1200

Base Open Units with drawer - base units

Base Open Units with drawer - base units
Base Open Units - Available widths in mm:

300,400, 450, 500, 600, 700, 800, 900, 1000, 1200

Angled High-Line Base Units

Angled High-Line Base Units
Angled High-Line Base Units - Available widths in mm:

250x360, 330x300

Corner base units

Corner High-Line Base Units

Corner High-Line Base Units
Corner High-Line Base Units - Available widths in mm:

800, 950, 1000, 1100, 1200, 1300, 1400, 1500mm

Corner Drawer-Line Base Units

Corner Drawer-Line Base Units
Corner Drawer-Line Base Units - Available widths in mm:

800, 950, 1000, 1100, 1200

Corner L Shaped High-Line Base Units

Corner L Shaped High-Line Base Units
Corner L Shaped High-Line Base Units - Available widths in mm:

880x800, 900x900

Corner Diagonal High-Line Base Units

Corner Diagonal High-Line Base Units
Corner L Shaped Diagonal High-Line Base Units

900x900, 1050x1050mm

Corner Curved L Shaped High-Line Base Units

Corner Curved L Shaped High-Line Base Units
Corner Curved L Shaped High-Line Base Units - Available widths in mm:

900x900

Corner Curved L Shaped High-Line Base Units

Corner Curved L Shaped High-Line Base Units
Corner Curved L Shaped High-Line Base Units - Available widths in mm:

900x900, 1200x1200mm

Wall units

Wall units 570, 720, 900

Wall units 570, 720, 900
Wall units - Available widths in mm:

570mm High

300, 400, 500, 600, 800, 1000, 1200

720mm High

150, 260, 300, 400, 450, 500, 600, 700, 800, 900, 1000, 1200

900mm High

300, 400, 500, 600, 800, 1000, 1200

Wall units Bi-Fold

Wall units Bi-Fold
Wall units - Available widths in mm:

570mm High

500, 600, 800, 900, 1000, 1200

720mm High

500, 600, 700, 800, 900, 1000, 1200

Curved wall units

Curved wall units
Curved wall units - Available widths in mm:

300x300mm

Wine Racks - wall units

Wine Racks - wall units
Wine Racks - wall units - Available widths in mm:

150, 300, 450, 500, 600


Angled wall units

Angled wall units
Angled Wall Units - Available widths in mm:

250x300

Corner wall units

Corner Wall Units

Corner Wall Units
Corner Wall Units - Available widths in mm:

600, 700, 800, 900

Corner Diagonal Wall Units

Corner Diagonal Wall Units
Corner Diagonal Wall Units - Available widths in mm:

600*600

Corner Wall Units.

Corner Wall Units.
Corner Wall Units - Available widths in mm:

600, 700, 800, 900

Dresser units

Dresser Wall Units

Dresser Wall Units
Dresser Wall Units - Available widths in mm:

500, 600, 1000

Tambour Dresser Wall Units

Tambour Dresser Wall Units
Tambour Dresser Wall Units - Available widths in mm:

500, 600, 1000

Top box units

Top Box Wall Units

Top Box Wall Units
Top Box Wall Units - Available widths in mm:

290mm High

500, 600, 800, 900, 1000

360mm High

300, 400, 500, 600, 800, 900, 1000

Larder units

Larder Units

Larder Units
Broom Units - Available widths in mm:

1820mm High

300, 400, 500, 600, 800, 1000

1970mm High

300, 400, 500, 600, 800, 1000

2150mm High

300, 400, 500, 600, 800, 1000

Broom Units

Broom Units
Larder Units - Available widths in mm:

1820mm High

300, 400, 500, 600, 800, 1000

1970mm High

300, 400, 500, 600, 800, 1000

2150mm High

300, 400, 500, 600, 800, 1000

Larder Units.

Larder Units.
Broom Units - Available widths in mm:

1820mm High

300, 400, 500, 600, 800, 1000

1970mm High

300, 400, 500, 600, 800, 1000

2150mm High

300, 400, 500, 600, 800, 1000

Oven Housing Units

Oven Housing Units
Oven Housing Units - Available heights in mm:

Available options for single ovens , double oven, microwaves and plate warmers

1820, 1970, 2150mm High



Fridge Freezer Housing Units

Fridge Freezer Housing Units
Fridge Freezer Housing Units - Available heights in mm:

Available options for 50/50 split and 70/30

1820, 1970, 2150mm High



Second Nature Curved Door

Second Nature Curved Door

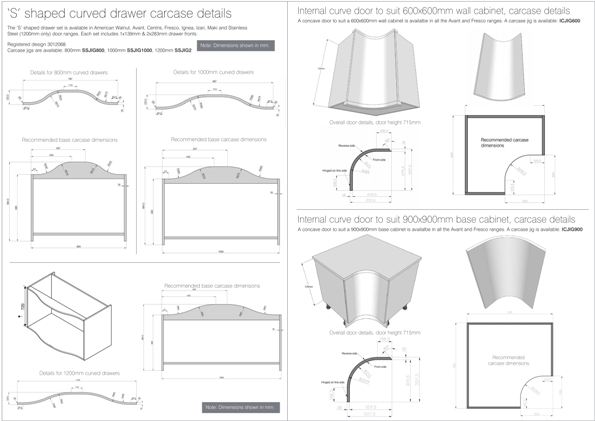

Second Nature S Shape Curved & Internal Curved Doors

Second Nature S Shape Curved & Internal Curved Doors

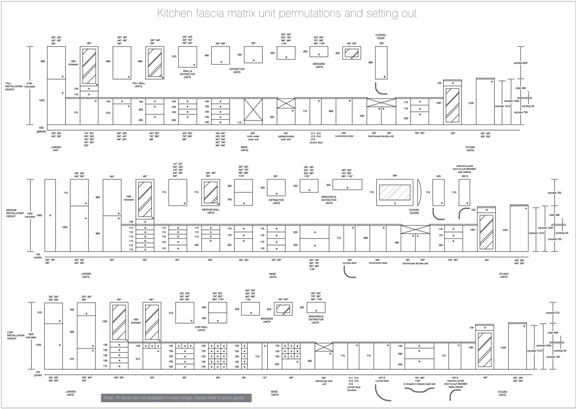

Second Nature Door Fascia Matrix Part 1

Second Nature Door Fascia Matrix Part 1
Please to enlarge it

Second Nature Door Fascia Matrix Part 2

Second Nature Door Fascia Matrix Part 2
Please to enlarge it
